DG-DURION-DR01 - Compact 5G Railway/Bus Router

The DURION-DR01 is a compact stand-alone high reliability 5G Train/Bus EDGE Gateway Router with a dedicated LINUX application processor capable of independently executing Client Services. This device combines the functions of an EDGE gateway computer with a HW accelerated dedicated WRT router core, which directly manages the 5G modem. Separate processors are used for application software and the WRT Linux router to improve performance and enable easier software development. The application processor directly connects to the core router with an internal Ethernet interface. This enables independent upgrading of application layer software services without the need to touch the Layer 3 routing core software.

The small footprint DURION-DR01 is ideal for upgrade programs due to its small size and support for project specific firmware adaptations. Train/Bus location is based on an IMU supported high sensitivity UDR/ADR GNSS subsystem. The 5G modem is based on the latest Qualcomm SDX65 chipset, which supports 2x2 UL and DL MIMO using n40 and n78 bands. Standard RJ45 connectors are used for the Ethernet interfaces. An optional high transmit power 802.11n WiFi is available for the DURION-DR01, please consult Duragon for more details.

The router features a soldered down GNSS subsystem with UDR/ADR support for installation cases where limited satellite coverage is available. In ADR mode the vehicle speed and direction is extracted from the vehicles J1939 bus. The ADR/UDR based positioning can reliably navigate underground or in poor satellite signal conditions assisted by the IMU based sensor data.

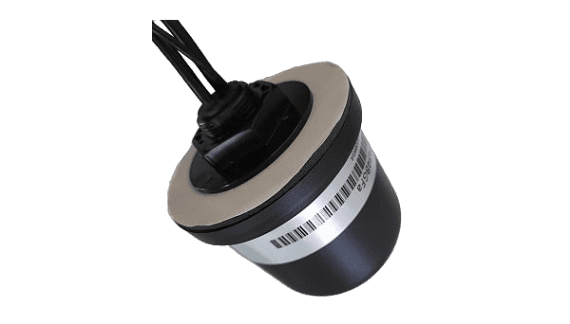

A suitable rooftop railway compliant antenna is availanble with 2x2 MIMO 5G and GNSS, 5m cables and FAKRA connectors.

  • icon APPLICATIONS
  • icon HIGHLIGHTS
  • icon SPECIFICATION
  • EDGE Gateway Router for Train Upgrades
  • Internet-on-Board
  • 5G Router for Onboard Diagnostic Systems
  • PIS System Gateway Controller
  • WiFi Gateway Using External AP
Read More
  • Dedicated Dual Core Layer 3 Router SoC with WRT-Linux FW
  • Quad core CORTEX-A7 1.2GHz Linux Application Processor
  • ARM CORTEX M0 system management and I/O Controller
  • HW accelerated advance routing functions VLAN, NAT, IPsec etc.
  • eSIM/uSIM
  • UDR assisted RTK GNSS navigation subsystem
  • 2x2 MIMO DL/UL LTE/5G MIMO modem
  • 4x 10/100/1000Mbit Ethernet RJ45 connectors
  • 2 + 1 RS-232/485 Serial ports
  • J1939 Bus FMS CAN port
  • 2 Digital input, 2 Outputs, Audio I/O
  • Internal voltage and temperature monitor
  • Secure tamper proof electronic serial number
  • 9-36VDC input with railway grade PSU
  • Compliant with En50155, En50121, En61373 and En45545-2
Read More

SYSTEM:

  • 4-core 64-bit ARM application processor
  • 512KB DRAM, 2GB eMMC Flash disk
  • SD-slot for storage expansion
  • CORTEX M0 System Management Controller

ROUTER:

  • MT7621A Mediatek Router Chipset
  • Dedicated WRT Router OS build
  • 10/100Mbit Ethernet interface to Application Processor
  • Direct connection to 5G Modem

STANDARD INTERFACES:

  • 4x 10/100/1000Mbit Routed Ethernet Ports
  • J1939 FMS CAN
  • 2x RS-485 and 1x RX-232 Ports
  • MIC and Stereo Output
  • Ignition Key and Emergency inputs
  • 2x MOSFET Open Drain Outputs

WIRELESS INTERFACES:

  • 3G/LTE/5G modem with eSIM and
    uSIM card slot
  • Modem band specification available upon request
  • UDR assisted GNSS receiver with antenna diagnostics
  • Optional 802.11n WiFi

MECHANICAL:

  • Anodized blue aluminum extruded enclosure
  • uSIm and SD card under rear panel
  • Connectors: RJ45, FAKRA C-D Code,
    Automotive I/O connector, 3.2mm jack

POWER SUPPLY:

  • 8-36VDC
  • Active voltage clamp compliant with ISO 7637-2 and En50155
  • 5W typical power consumption

DIMENSIONS:

  • 135mm(W) x 212mm(D) x 35mm(H)
  • Flanges 12mm

WEIGHT:

  • 0.35Kg

TEMPERATURE RANGE:

  • Operating: -25° to +55°C
  • Storage: -40° to +85°C

HUMIDITY:

  • 95% at 45°C non-condensing

PROTECTION:

  • IP41

CERTIFICATION:

  • En50155, En50121, En61373
  • En45545-2
  • ECE Reg 10.
