On-board Intelligent Bus Passenger Information Displays

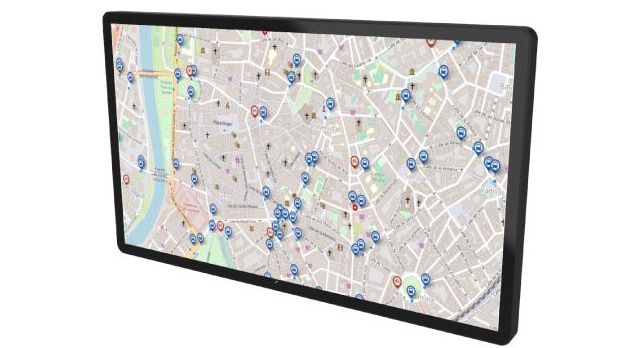

Traditional LCD based Passenger Information systems have based on an of-the shelf vehicle PC with LCD displays attached to it using VGA or HDMI cables and repeaters. This architecture is not optimal, and has several challenges and limitations. The DURAGON PID-Series intelligent PIS-displays enable the creation of distributed intelligent HD resolution PID-systems, which do not require a host vehicle PC for the media delivery and storage. Display information is not sent throughout the vehicle, but rather each PID-display manages its own content delivery based on location information, or other control data received from the bus.

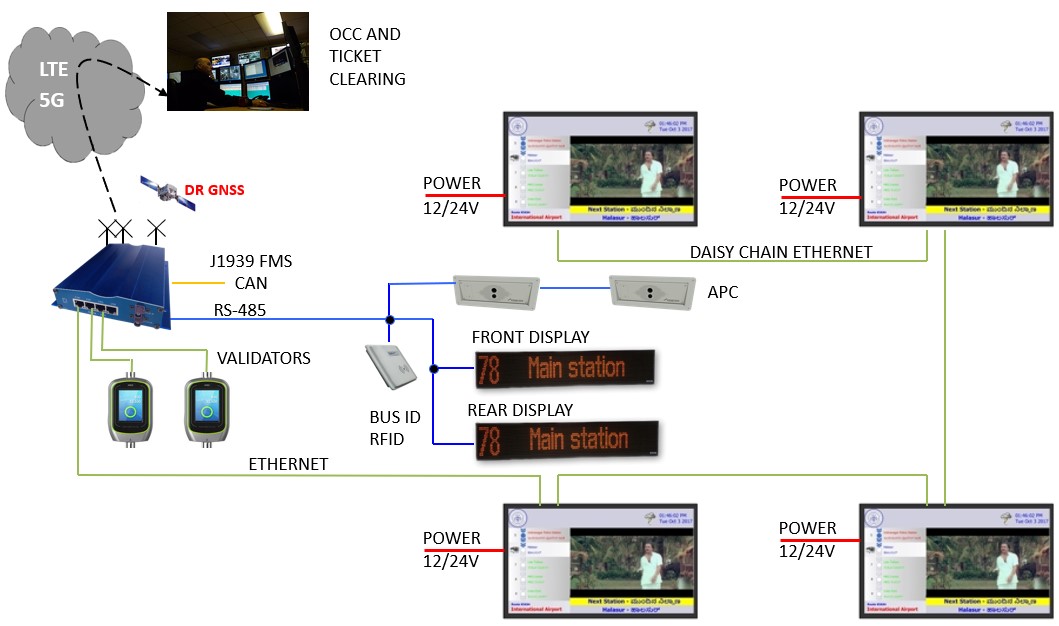

Furthermore, one PID in the bus can be configured as the master device, responsible for navigation and connection to other systems using Ethernet or RS-485, while slave PID-devices connect to the master unit receiving control and positon data using a daisy-chained RS-485 or Ethernet network, reducing wiring complexity and cost.

PID

A power-efficient dual core i.MX6 processor with advanced LINUX firmware controls the operation of the PID, and the delivery of rich media content including animations, effects, static images, as well as HD-video combined with bus operational data. No host PIS server is required. Media is stored in each device, and can be updated over a service WiFi o through the backbone Ethernet. The software is LINUX based, empowering integrators to use QT for graphical design, and compile their QT application to work on all PID-series displays. Such development toolchains and open SW platforms accelerate project completion, and enables system integrators to independently maintain their applications.

Navigation is managed by the internal 32-bit system control microcontroller, which uses a multi-constallation tracking GNSS combined with 3D accelerometer and gyroscope to guarantee accurate 3D navigation in difficult urban conditions, such as under flyovers, covered or underground terminals etc. The navigation solution can seamlessly and transparently hand over GNSS to sensor-based navigation.

The Duragon PID-series displays connect directly to the 12 or 24VDC vehcile battery with ignition key sensing. When ignition is activated, the system microcontroller wakes up the main i.MX6 processor in a controlled manner. A proprietary multi-stage active protection and filtering circuitry is designed to exceed the requirements of EMC and immunity standards.

Duragon Systems can provide customization services, which can include engineering, production and certification. Available are various LCD sizes and aspect ratios, mechanical solutions, as well as project specific functionalities or SW interfaces to other onboard systems.

PID
