Products

DG-2J7A84BGFa

DG-2J7A84BGFa - 5G/GNSS Railway/Bus Rooftop Antenna

This 3-in-1 antenna combines 2x 5G NR MIMO with 1x GNSS and delivers faster and more responsive mobile broadband experiences. DG-2J7A84BGFa has been qualified for compliance to EN50155, EN45545-2 and EN61373 by Duragon. The antena delivers powerful worldwide connectivity and is compatible with 5GNR/4G LTE MIMO, 3G and 2G bands (617-5925 MHz frequency range). This antenna facilitates communications in MIMO or separate protocol configuration, allowing devices to remain online while the vehicle is moving through different coverage areas. These features make it a superior candidate for the next generation of terrestrial mobile services including high-end railway and bus transportation applications. The easy-to-install heavy-duty design and FAKRA connectors makes this antenna ideal to be used with DCORE, DURION DR01 and DURION ER03 5G-routers.

The DG-2J7A84BGFa is enclosed in a robust and heavy-duty housing made with high-quality acrylonitrile styrene acrylate (ASA) UV stable material, known for its thermal resistant properties, and a plastic antenna base as an alternative low-cost solution to the metal base option. Ground plane independence and screw mount technology allow for solidly locking the antenna on top of its mounting location, making its installation easy and reliable. Cable lengths can be customized to specific installation requirements. The standard legths are 5m (FAKRA) and 0.4m (N-Connector).

APPLICATIONS
HIGHLIGHTS
SPECIFICATIONS

2x2 MIMO and GNSS antenna for DURION-DR01 and DCORE-DR01-R
Dual antennas for 4x4 MIMO for DCORE-DR01-MIMO router
Universal use Railway 3-in-1 5G/GNSS antenna
Multiband MIMO antenna for bus routers
V2V, V2X and Fleet Management

Screw mount feedthrough installation
Diameter 96mm, height 90mm
5GNR/4G LTE/3G/2G MIMO and GNSS support
Frequency range 617 – 5925 MHz
omni-directional radiation pattern and linear polarization
GNSS active gain 23 dB, noise figure parameter of 1.2
GNSS SAW out of band rejection ~32 dB at 1575 – 1602 MHz
Acrylonitrile styrene acrylate (ASA) UV stable casing
Tested and qualified for EN50155, EN50151 and EN62373

Technologies 5G, 4G, 3G and 2G/li>
Standards 5GNR/4GLTE/FirstNet/CBRS/LPWA/CAT-X/CAT-Mx/CAT-NBx/NB-IoT/3G/2G
Frequency 617-960, 1427-2690, 3300-5000, 5150-5925MHz
Return lodd (dB) ~-7.9, ~-13.3, ~-11.4, ~-12.9
VSWR ~2.6:1, ~1.7:1, ~1.9:1, ~1.7:1
Efficiency (%) ~44.1, ~56.3, ~44.0, ~42.4
Peak Gain ~1.4, ~3.6, ~3.4, ~3.8
Impedance 50 Ohms
Polarisation Linear
Radiation pattern Omni-Directional
Max power 35W

GNSS ANTENNA:

Standards GPS/QZSS/Galileo/GLONASS
Frequency 1575.42, 1598-1610MHz
VSWR 1.5:1
Active gain 23 @ 3 V, 24 @ 5 V
SAW Post-Filter
Polarisation RHCP
Impedance 50 Ohms
Current consumption 15 - 25mA

CABLE AND CONNECTORS:

5m with FAKRA C-D
0.4m with N-Series connectors

MECHANICAL:

acrylonitrile styrene acrylate (ASA
Diamter 96mm, height 90mm
Feedtrough diameter 28mm

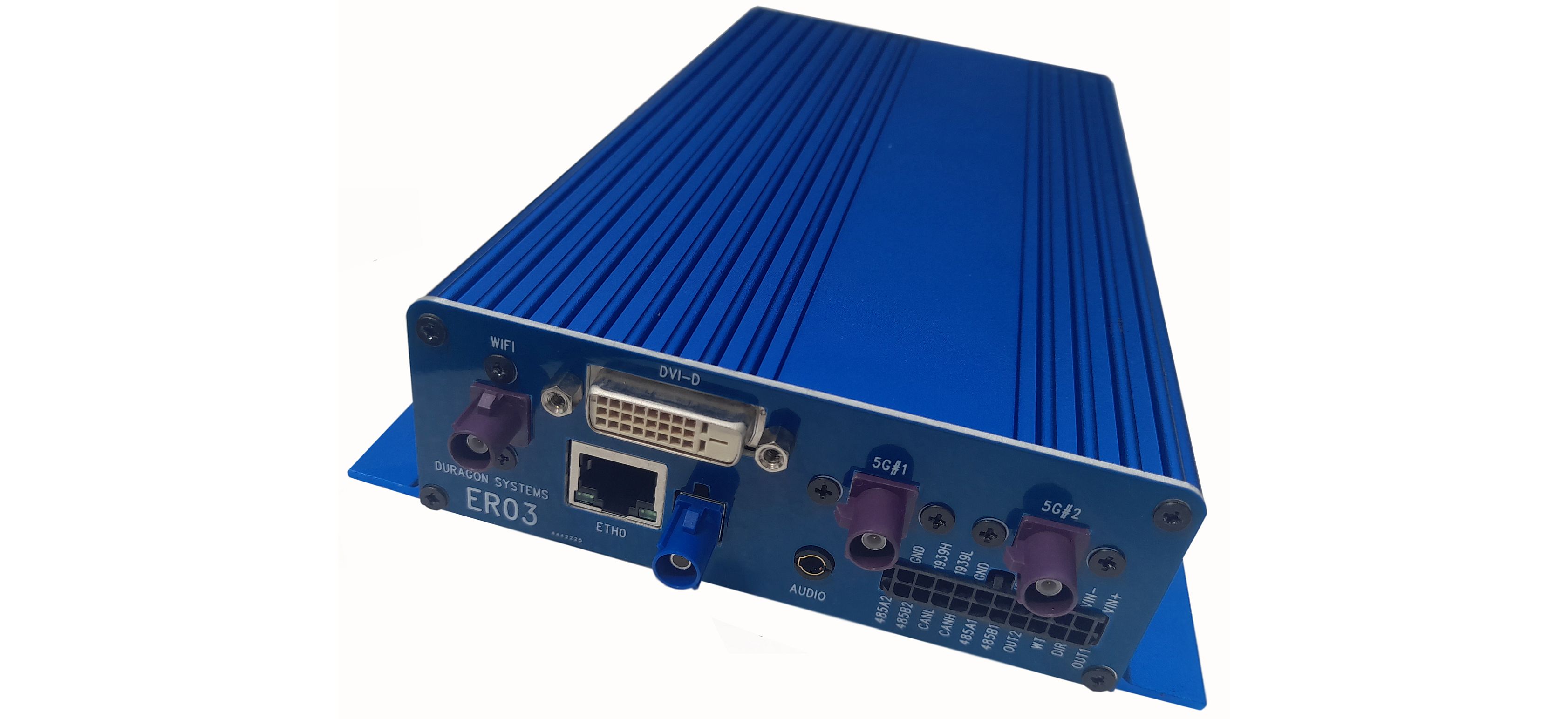

DG-DURION-ER03 - High Performance Dual 5G Train/Bus Router

The DURION-ER03 is a high performance stand-alone Multi-Uplink 5G EDGE Vehicle Gateway Router with a dedicated LINUX application processor capable of independently executing Client Services. The Core Router bases on a NXP Layerscape LS1046A networking processor with a dedicated WRT Router OS. This device combines the functions of an EDGE gateway computer with a HW accelerated dedicated WRT router core, which directly manages the Dual 5G modems. Separate processors are used for application software and the WRT Linux router to improve performance and enable easier software development. The application processor directly connects to the core router with an internal Ethernet interface. This enables independent upgrading of application layer software services without the need to touch the Layer 3 routing core software.

The small footprint DURION-ER03 is ideal for upgrade programs due to its small size and support for project specific firmware adaptations. Vehcile location is based on an IMU supported high sensitivity UDR or ADR supported GNSS subsystem. In ADR mode, the accjurate speed and direction information is extracted from the vehicle bus. The Dual 5G modems are based on the latest Qualcomm SDX65 chipset, which supports 2x2 or 4x4 UL and DL MIMO using n40 and n78 bands. Standard RJ45 connectors are used for the External Gbit Ethernet interfaces complimented by two SFP+ sockets, which can support 10Gbit copper or fiber interface or 1000Base-T1. An optional high transmit power WiFi is available for the DURION-ER03, please consult Duragon for more details.

The router features a soldered down GNSS subsystem with UDR/ADR support for installation cases where limited satellite coverage is available. The positioning subsystem can reliably navigate underground or in poor satellite signal conditions assisted by the IMU based sensor data. A separate 3D accelerometer is available for driver performance monitoring.

Suitable rooftop antenns are available with 2x2 MIMO 5G and GNSS, 5m cables and FAKRA connectors.

HIGHLIGHTS
APPLICATIONS
SPECIFICATIONS

High Performance WRT Linux NXP LS1046A network processor
CORTEX A7 Linux CPU and CORTEX M0 controller
Dual 5G modems , eSIM and uSIM support
ADR/UDR GNSS for challenging navigation conditions
4+1 Independent GBIT Ethernet MAC, 2x SFP+ Sockets
J1939 CAN, RS-485, Audio I/O, Digital I/O, DVI-D ports
Wide input range (8-36VDC) EN50155 and ECE Reg 10. compliant PSU
3D accelerometer for driver behavior monitoring

2x2 and 4x4 Dual 5G MIMO EDGE Router
Advanced Bus OBU
Passenger Information System Gateway
Tactical router for Public Safety
Network security

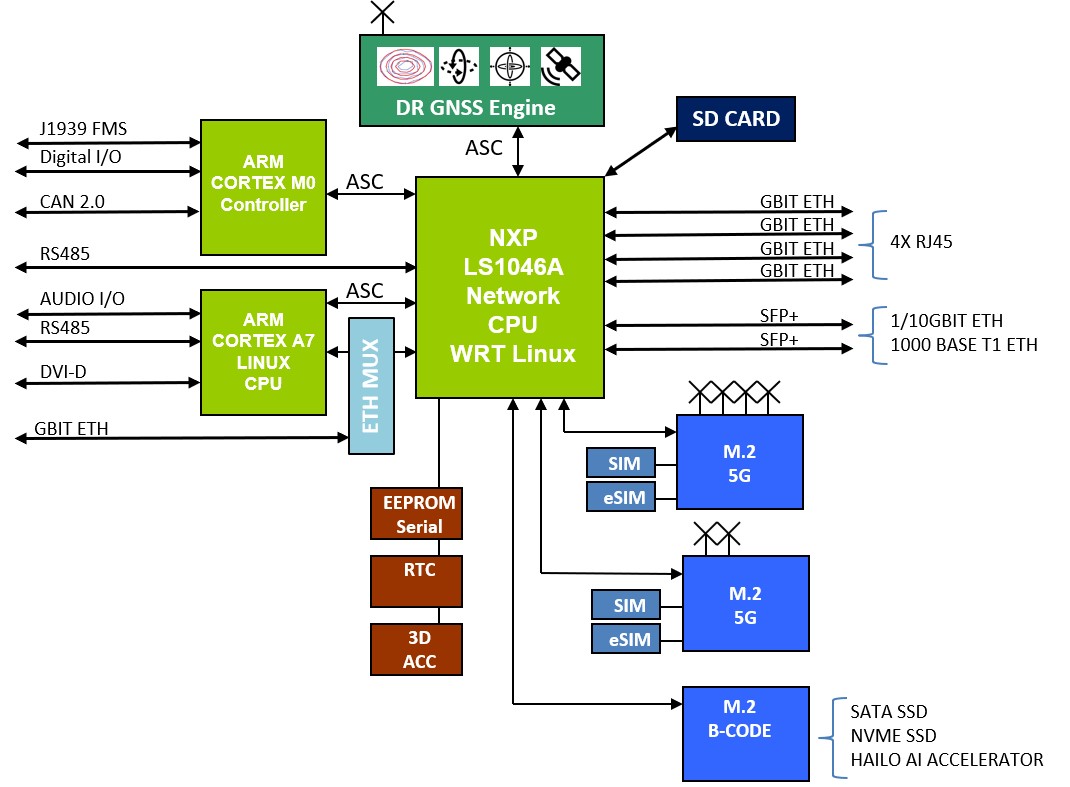

SYSTEM:

4-core 64-bit ARM CORTEX A7 application processor
512KB DRAM, 2GB eMMC Flash disk
SD-slot for storage expansion
CORTEX M0 System Management Controller

ROUTER:

NXP Layerscape LS1046A Netoworking Porcessor
HW accelerated optimized architecture
Dedicated WRT Router OS build
10/100Mbit Ethernet interface to Application Processor
Direct connection to 2x 5G Modem (USB 3.0/PCIe2.0)
M.2 Expansion socket for SATA SSD, NVME or WiFi

STANDARD INTERFACES:

4x1 10/100/1000Mbit Routed Ethernet Ports
2x SFP+ for 10Gbit Ethernet or 1000Base-T1
J1939 FMS CAN
2x RS-485
DVI-D port from application processor
MIC and Stereo Line Output
Ignition Key and Emergency inputs
2x MOSFET Open Drain Outputs

WIRELESS INTERFACES:

2x 5G modems with eSIM and
uSIM card slot
Modem band specification available upon request
UDR/ADR assisted GNSS receiver
Optional 802.11n/ax WiFi

MECHANICAL:

Anodized blue aluminum extruded enclosure
2x uSIM accessible under front panel
Connectors: RJ45, FAKRA C-D Code,
Automotive I/O connector, 3.2mm jack

POWER SUPPLY:

8-36VDC
Active voltage clamp compliant with ISO 7637-2 and En50155
10-12W typical power consumption

DIMENSIONS:

115mm(W) x 212mm(D) x 52mm(H)
Flanges 12mm

WEIGHT:

0.35Kg

TEMPERATURE RANGE:

Operating: -25° to +55°C
Storage: -40° to +85°C

HUMIDITY:

95% at 45°C non-condensing

PROTECTION:

IP41

CERTIFICATION:

In progress

ACS-450 – LTE CAT 1 MODEM FOR LTE450 NETWORKS

ACS-450 – LTE450 CAT 1 M.2 Modem

The Duragon ACS-450 brings LTE450 connectivity to ER- and DR-series routers, which include a M.2 modem socket. This CAT 1 LTE module is capable of supporting all the most commonly used 450MHz LTE bands. The modem does not include SIM interfaces onboard, the SIM and eSIM are to be mounted on the router’s system board. ER- and DR-series routers, which have multiple M.2 modem sockets, the ACS-450 can be used together with a MIMO 2x2 5G modem in the DURION DR01 router. This scenario enables the use of public 5G and LTE450 networks together depending on use cases.

Apart from providing a data and SMS interfaces, the ACS-450 module supports voice calls. The audio output of the modem drives a 3.1W mono amplifier, which can connect to an external power amplifier of small speaker. The MIC input likewise is MONO, with internal active MIC-Bias circuitry. An external audio adapter is available with a 3.5mm audio jack.

Two status LEDs are supported, the modem status LED is located on the modem board, while the Network Status LED signal is present in the M.2 interface.

Highlights
APPLICATIONS
Specifications

M.2 form factor LTE450 modem
USB 2.0 Host interface
Dual SIM support (uSIM and eSIM)
LTE-FDD B1/B3/B5/B7/B8/B20/B28/B31/B72
Compliant with 3GPP TS 27.007, 3GPP TS 27.005
Modem and Network Status indicators
Support for voice calls
3.1W Mono audio amplifier onboard
Electret MIC input with Bias
u.FL antenna connector
Compatible with ER- and DR-series routers
Operating temperature range -35 °C to +75 °C

Public safety vehicle routers
Multi-path tactical EDGE router
Private LTE450 networks

MODEM:

LTE-FDD B1/B3/B5/B7/B8/B20/B28/B31/B72

SIM:

2x SIM Interfaces
Software selectable using AT commands
uSIM (SIM 1) and eSIM (SIM 2) support

Audio:

MONO microphone input with microphone BIAS
MONO audio preamplifier for speaker

Connectors:

u.FL for cellular antenna
1734839-5 0.5mm pitch FPC connector for Audio
( 3.5mm jack adapter available)

Management:

Microcontroller for reset and USB-Boot management

Interface:

USB 2.0

Mechanical:

B-code M.2 form factor, 30 x 52 mm size

Power:

7W Peak @ 2.5A

Indicators:

1x MODEM Status (onboard), 1x Link Status (M.2)

Firmware:

Supports USB Booting

DG-PID29E

DG-PID29E - Inteligent 29" Widescreen Bus PID

OVERVIEW:

DG-PID29E is an intelligent IP-connected ultra-wide 29" High resolution passenger information display. A sunlight readable high contrast and brightness HD-resolution 1920 x 540 px LCD display delivers an outstanding visual experience. This display is designed specifically for PIS or Dynamic Route Map applications for bus installations. The Quad-core 64-bit ARM CORTEX-A17 Application Processor is capable of delivering rich media content combining video, animations, graphics and operational information. Available OS options include Android or Linux OS.

The DG-PID29E operates fully autonomously and can receive control information or updated media content from the Duragon DURION DR01 or ER03 Router Gateway over 10/100/1000Mbit Ethernet. Secondary optional communication interfaces include RS-485 and USB. An inbuilt ignition key controlled 8-36VDC input range automotive class power supply can connect directly to the main 24VDC battery system.

The DG-PID29E is purpose-built for buses with a wide operating temperature range and vibration resistance. The enlosure is powder coated aluminum with a IP65 (front) and IP40 (rear) ingress protection grade.

APPLICATIONS
HIGHLIGHTS
SPECIFICATIONS

Onboard Dynamic Route Map
Bus Passenger Information/Infotainment Display
Metro/Train PID

29" 1920 x 540 px resolution LCD
Ambient light sensor, 700 nit brightness
Hardened Polycarbonate protective cover
CORTEX-A17 Quad Core display processor
Linux or Android OS
10/100/1000Mbit Ethrnet port
Vehicle grade PSU

SYSTEM:

4-core 64-bit CORTEX-A17 application processor
Up to 4GB DRAM, 8/16GB eMMC Flash disk
CF-card slot for removable storage
Dual Channel LVDS display interface

DISPLAY:

29" Ultra-Wide active matrix color TFT
Resolution 1920 x 540 px
Active display area 198 (H) x 705(W)
LED backlight with SW control
Brightness 700nits, 1200:1 Contrast
Viewing angle 178(H) / 178(V)
Response time 16ms

STANDARD INTERFACES:

10/100/1000Mbit Ethernet
Service USB 2.0
RS-485 interface (option)

MECHANICAL:

Aluminum enclosure
Matt black powder coated finish
Connectors: RJ45, USB Type A, Plug terminal block

POWER SUPPLY:

24VDc nominal (9 to +36Vdc)
30W typical (50W MAX) power consumption

DIMENSIONS:

739.1(W) x 284.85(H) x 56(D)

WEIGHT:

6,5Kg

TEMPERATURE RANGE:

Operating: -10° to +55°C
Storage: -20° to +70°C

HUMIDITY:

95% at 45°C non-condensing

PROTECTION:

IP65, front face
IP40, rear

DG-DURION-ER01

DG-DURION-ER01 - Compact 5G Railway/Bus Router

The DURION-ER01 is a compact stand-alone high reliability 5G Train/Bus EDGE Gateway Router This device combines HW accelerated dedicated WRT networking processor, directly manages the 5G modem and the GNSS receiver chip. External vehicle I/O and J1939 CAN interfacing is managed by a CORTEX M0 microcontroller.

The small footprint DURION-ER01 is ideal for upgrade programs due to its small size and support for project specific firmware adaptations. Train/Bus location is based on an IMU assisted high sensitivity UDR/ADR GNSS subsystem. The 5G modem is installed on an internal M.2 socket. The default Quectel RG500 modem supports 2x2 UL and DL MIMO using n40 and n78 bands. Standard RJ45 connectors are used for the Ethernet interfaces. An optional high transmit power 802.11n WiFi is available for the DURION-ER01, please consult Duragon for more details.

The router features a soldered down GNSS subsystem with UDR/ADR support for installation cases where limited satellite coverage is available. In ADR mode the vehicle speed and direction signals from the vehicle. The ADR/UDR based positioning can reliably navigate underground or in poor satellite signal conditions assisted by the IMU based sensor data.

A suitable rooftop railway/bus compliant antenna is availanble with 2x2 MIMO 5G and GNSS, 5m cables and FAKRA connectors.

APPLICATIONS
HIGHLIGHTS
SPECIFICATION

EDGE Gateway Router for Train/Bus Upgrades
Internet-on-Board
5G Router for Onboard Diagnostic Systems
PIS System Gateway Controller
Combined WiFi/5G Gateway Router

Dedicated Dual Core Layer 3 Router SoC with WRT-Linux FW
Quad core CORTEX-A7 1.2GHz Linux Application Processor
ARM CORTEX M0 system management and I/O Controller
HW accelerated advance routing functions VLAN, NAT, IPsec etc.
eSIM/uSIM on both M.2 sockets
UDR assisted High accuracy GNSS navigation subsystem
2x2 MIMO DL/UL LTE/5G MIMO modem
4x 10/100/1000Mbit Ethernet RJ45 connectors
2 + 1 RS-232/485 Serial ports
J1939 Bus FMS CAN port
2 Digital input, 2 Outputs, Audio I/O
Internal voltage and temperature monitor
Secure electronic serial number
9-36VDC input with railway grade PSU
Compliant with En50155, En50121, En61373 and En45545-2

CORTEX M0 System Management Controller

ROUTER:

MT7621A Mediatek Networking Processor
Dedicated WRT Router OS build
USB 3.0/PCIe connection to 5G Modem /li>

STANDARD INTERFACES:

4 x 10/100/1000Mbit LAN 1x WAN Ports
J1939 FMS CAN
2x RS-485 and 1x RX-232 Ports
Ignition Key and Emergency inputs
2x MOSFET Open Drain Outputs

WIRELESS INTERFACES:

M.2 card slot for wireless interface
LTE/5G modem with eSIM and
uSIM card slot
Modem band specification available upon request
UDR/ADR assisted Quectel LC29 GNSS receiver

MECHANICAL:

Anodized blue aluminum extruded enclosure
uSIm and SD card under rear panel
Connectors: RJ45, FAKRA C-D Code,
Automotive I/O connector, 3.2mm jack

POWER SUPPLY:

8-36VDC
Active voltage clamp compliant with ISO 7637-2 and En50155
5W typical power consumption

DIMENSIONS:

104mm(W) x 103mm(D) x 30mm(H)
Flanges 12mm

WEIGHT:

0.2Kg

TEMPERATURE RANGE:

Operating: -25° to +55°C
Storage: -40° to +85°C

HUMIDITY:

95% at 45°C non-condensing

PROTECTION:

IP41

DESIGN COMPLIANCE:

En50155, En50121, En61373
En45545-2
ECE Reg 10.
