DG-AP1001

DG-AP1001 - High Performance Routing Bus AP

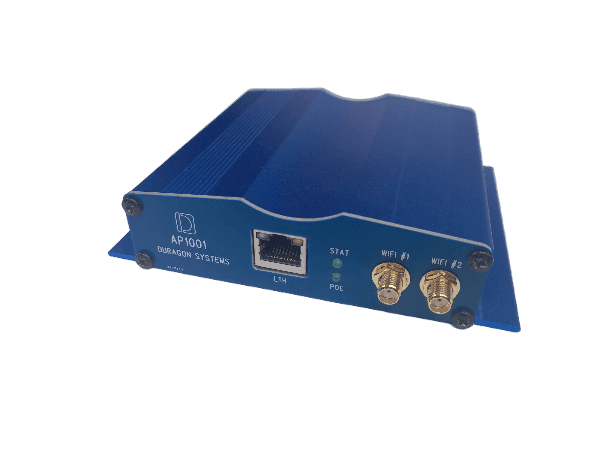

The AP1001 is a compact stand-alone Dual-Band 802.11ax/ac WiFi 6 routing acccess point for bus ITS applications. This access point bases on a WRT Linux Networking Processor Core, which is capable of operating in both AP- as well as Router-mode. Device configuration takes place using am easy-to-use and intuitive LUCY web browser interface.

AP1001 WiFi bases on the Mediatek MT7915DAN chipset, which is compliant with WiFi 6.

This small footprint AP is ideal to compliment existing bus computers with high speed WiFi access. AP1001 is 802.11af PoE compliant with enhanced port protection and PoE EMC filtering (radiated and conducted emissions). Two options are available, one with RJ45 Gbit Ethernet and one with X-Coded M12 Gbit Ethernet.

DG-AP1001 HIGHLIGHTS
DG-AP1001 APPLICATIONS
DG-AP1001 SPECIFICATIONS

Mediatek MT7621A networking processor
WRT Linux with LUCY configuration
10/100/1000 Ethernet port
MT7915DAN WiFi 6 chipset
Dual Band 2.4GHz and 5GHz
802.11af PoE
Electronic serial number
NXP SE050 Seccurity chip
Designed for compliance with EN50155, ECE Reg. 10

WRT-Linux wiFi Gateway Router
Passenger WiFi Access Point

MEDIATEK MT7621A Networking Processor
Dedicated WRT Linux OS
Electronic serial numbr Flash EEPROM
NXP SE050 Secure Element IC

WiFi:

The MT7915DAN WiFi6 chipset
802.11ax/ac/a/g/n compatible
64/128-bit WEP Encryption, WPA, WPA2
(2Tx2R) MIMO, SMA Antenna connectors

Datarates:

IEEE802.11ax 1201Mbps @TX/RX
IEEE802.11ac 1733Mbps @TX/RX
IEEE802.11a/n 600Mbps @TX/RX
IEEE802.11a/g 108Mbps
IEEE802.11b 22Mbps

Power:

PoE 802.11af, Class 3
Typical power consumption 2.5W

Mechanical:

Extruded anodized aluminum case
12mm flanges
103mm (D) x 103mm (W) x 30mm (H)

Indicators:

1x Device Status, 1x PoE Status

Firmware:

WRT 23.X
